Wideck

Long Span Roof and Floor Deck Ceiling Systems

Long, clear, unobstructed spans are the inspiration behind Wideck® long span roof and floor deck ceiling systems. These architectural roof deck ceiling systems efficiently clear span from 10 to an impressive 58 feet.

This creates a visually open building envelope with the structural framing system. Three general ceiling appearances offer long-spanning options: beamed, flush with shadow lines, or bold ribbed. Wideck Systems can be highly light-reflective for indirect lighting and can enhance the daylight available when designed with a clerestory, window walls, or skylights. Acoustic Wideck also enables the architect or acoustic consultant to control the interior sound environment of the building. The applications for Wideck Systems used in conjunction with exposed structural framing systems are limited only by the designer’s imagination.

Wideck contributes to the beauty of the architect’s interior design and can establish the exterior focal point of the entire building. The acoustic control, appearance, structural capacities, and ceiling benefits of the Wideck profiles have led to their specification in the following types of projects: airport terminals, arenas, art galleries, canopies, church chapels, classrooms, convention centers, gymnasiums, libraries, museums, natatoriums, office buildings, power plants, schools, shopping malls and centers, theaters, transit stations, and more…

Product Literature

Wideck

Long Span Roof and Floor Deck Ceiling Systems

48 pages

Download PDF

Technical Assets (BIM / Revit® Models)

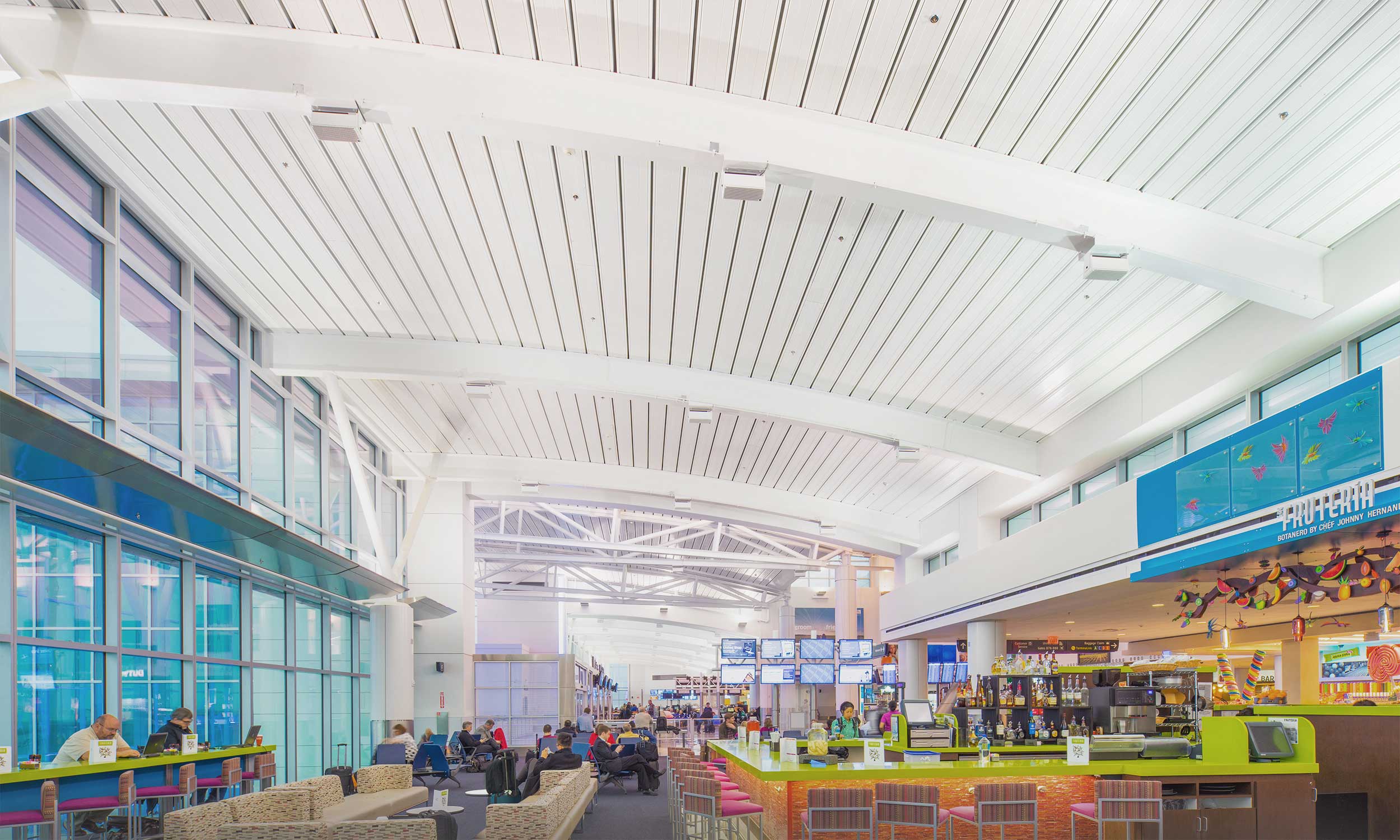

George Bush Intercontinental Airport, Terminal B — Houston, Texas / Super Wideck® SWN12A

Roof Decks

Floor Decks

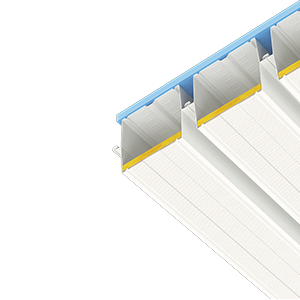

Wideck SWA

Spans 24' to 48'. Bold beamed appearance.

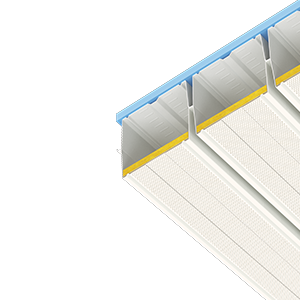

Wideck SWNA

Spans 24' to 50'. Narrow beamed appearance.

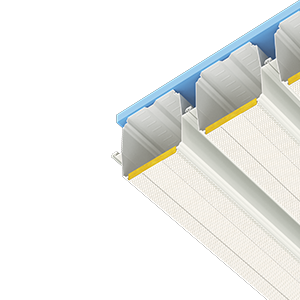

Wideck SWIA

Spans 26' to 58'.

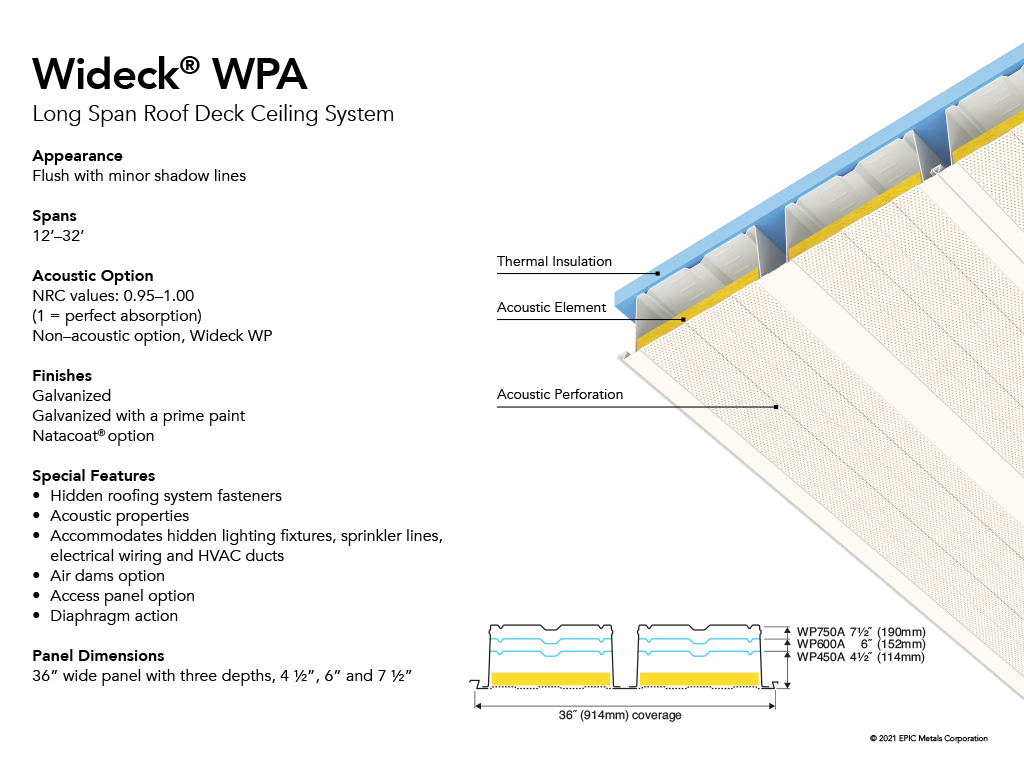

Wideck WPA

Spans 12' to 32'. Flush with shadow lines appearance.

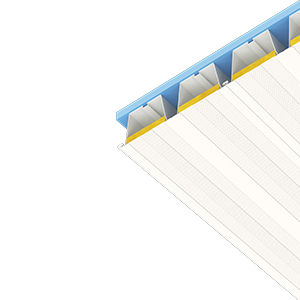

Wideck EDPA

Spans 10' to 34'. Flush with shadow lines appearance.

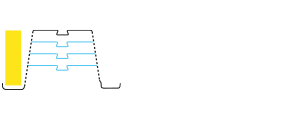

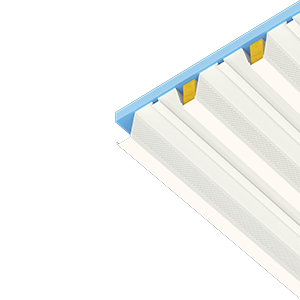

Wideck EDA

Spans 10' to 30'.

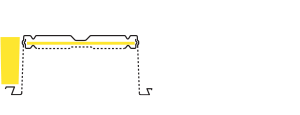

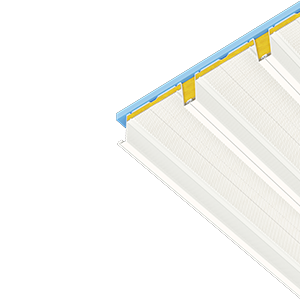

Wideck WHFA

Spans 12' to 30'. Bold ribbed appearance.

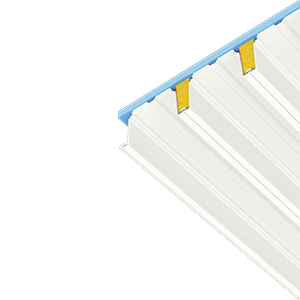

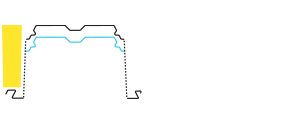

Wideck WNA

Spans 16' to 36'. Bold ribbed appearance.

Wideck WA

Spans 12' to 30'.

Wideck SWAC

Spans 20' to 38'. Bold beamed appearance.

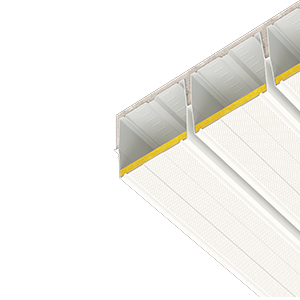

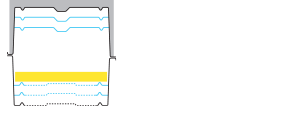

Wideck SWNAC

Spans 20' to 38'. Narrow beamed appearance.

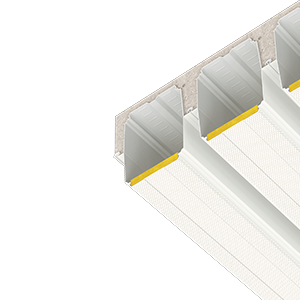

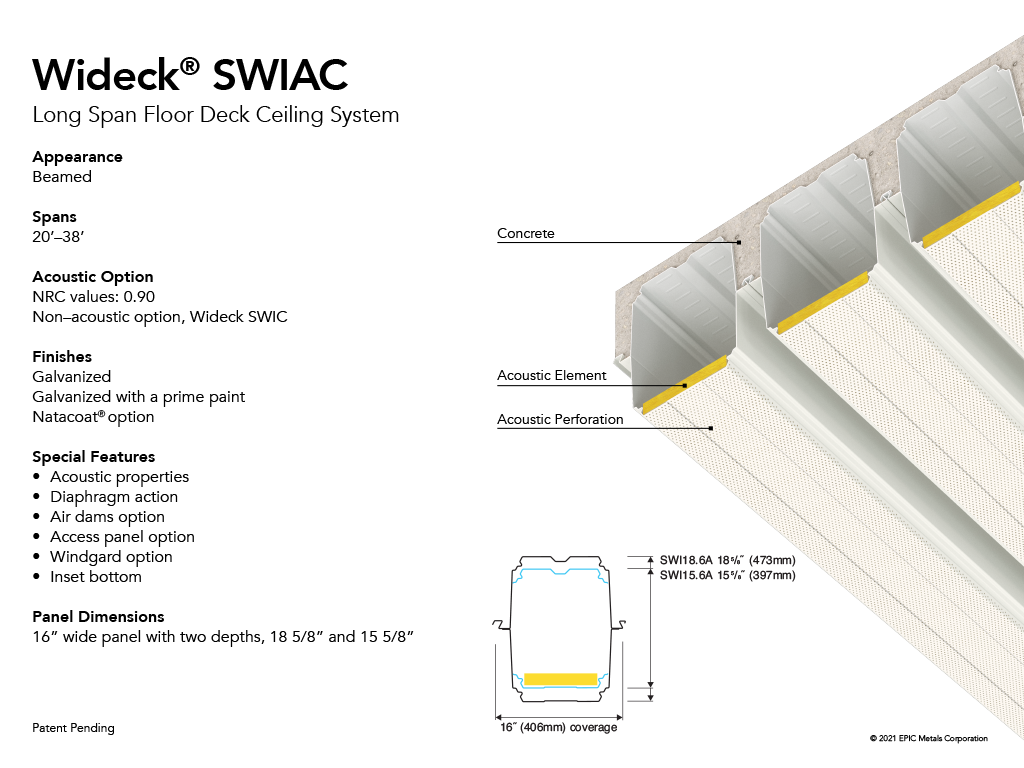

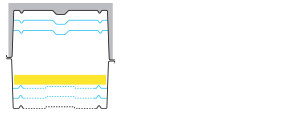

Wideck SWIAC

Spans 20' to 38'. Narrow beamed appearance.

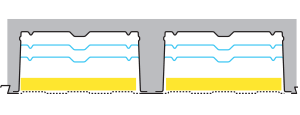

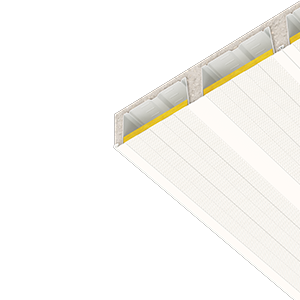

Wideck WCPA

Spans 13' to 25'.

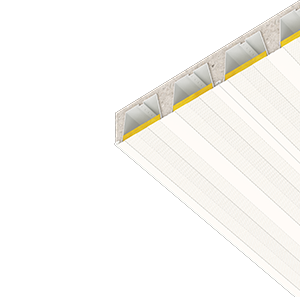

Wideck EDCPA

Spans 10' to 25'. Flush with shadow lines appearance.

Wideck WCHFA

Spans 13' to 25'. Bold ribbed appearance.

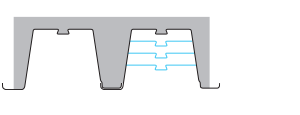

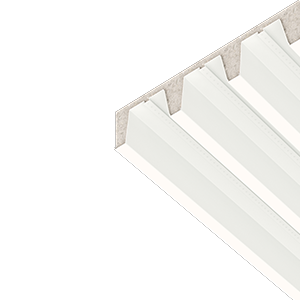

Wideck EDC

Spans 10' to 25'.

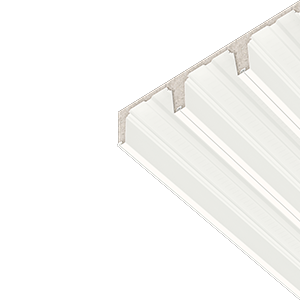

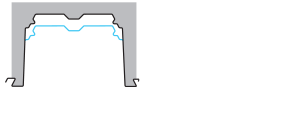

Wideck WNC

Spans 20' to 38'.

Wideck WC

Spans 13' to 25'.

Roof Deck Ceiling Systems

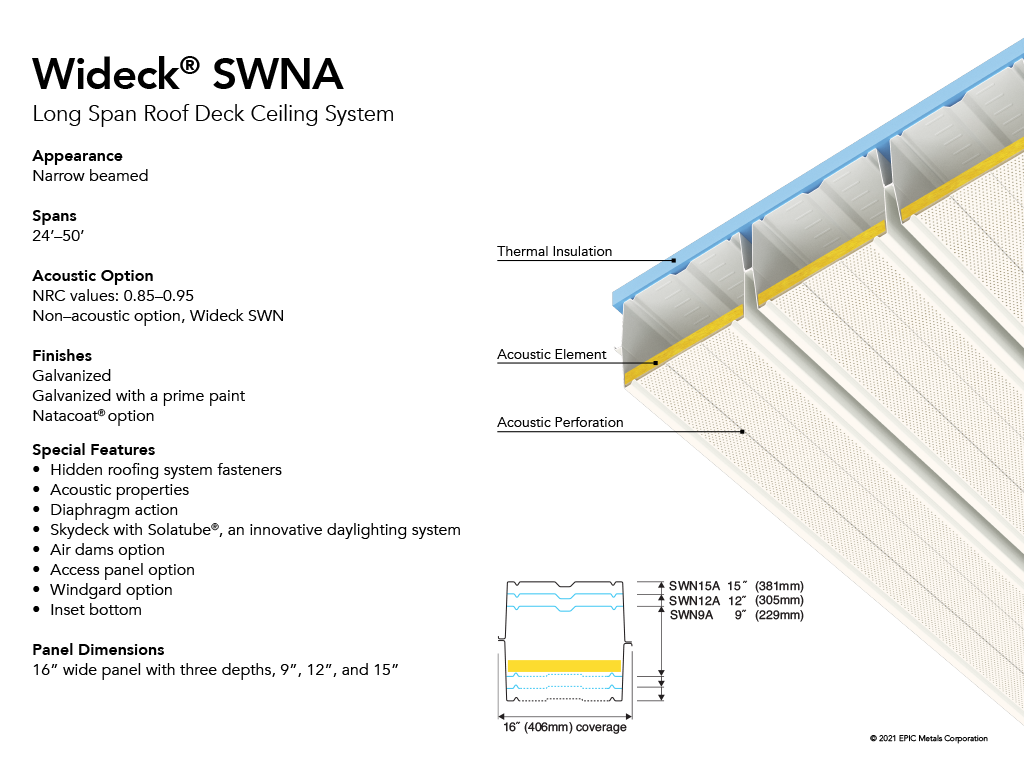

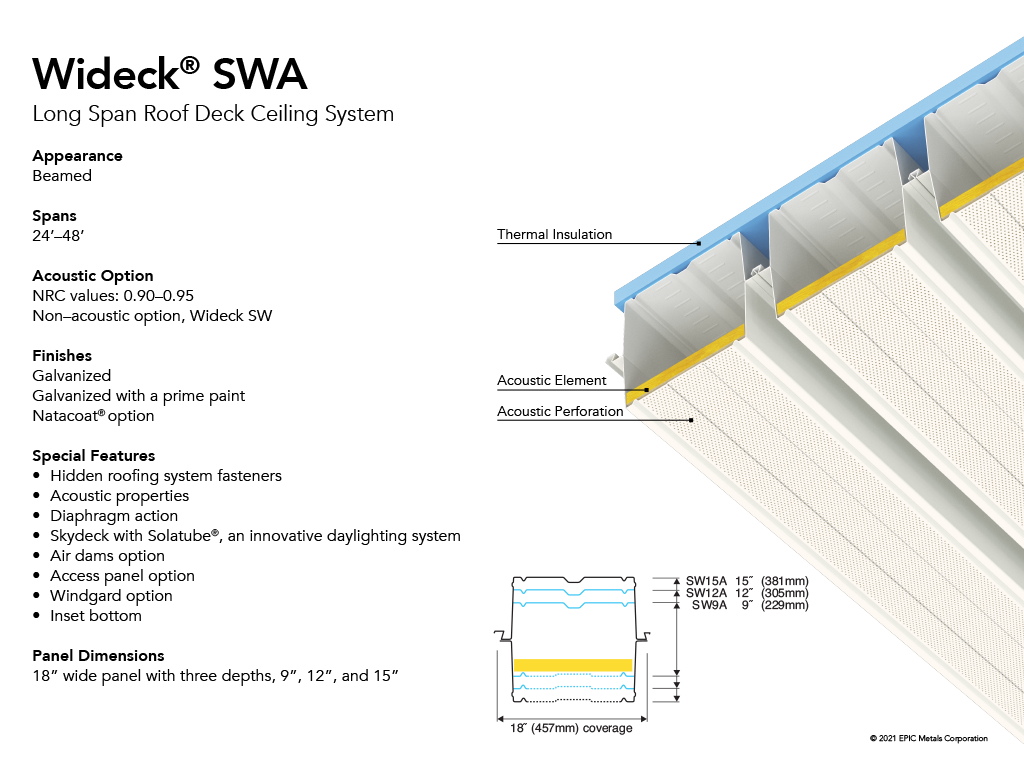

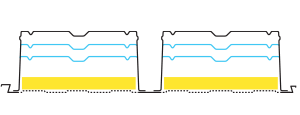

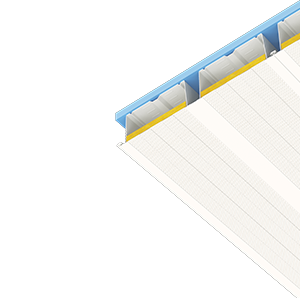

Wideck SWA	Wideck SWNA	Wideck SWIA	Wideck WPA
Spans 24' to 48'.	Spans 24' to 50'.	Spans 26' to 58'.	Spans 12' to 32'.
Appearance Beamed	Appearance Beamed	Appearance Beamed	Appearance Flush with minor shadow lines
Acoustic Option NRC values: 0.90-0.95 Non-acoustic option, Wideck SW	Acoustic Option NRC values: 0.85-0.95 Non-acoustic option, Wideck SWN	Acoustic Option NRC values: 0.90 Non-acoustic option, Wideck SWI	Acoustic Option NRC values: 0.95-1.00 (1 = perfect absorption) Non-acoustic option, Wideck WP
Panel Dimensions 18" wide panel with three depths 9", 12", and 15"	Panel Dimensions 16" wide panel with three depths 9", 12", and 15"	Panel Dimensions 16" wide panel with two depths 18 5/8" and 15 5/8"	Panel Dimensions 36" wide panel with three depths 4.5", 6", and 7.5"
Product Sheet	Product Sheet	Product Sheet	Product Sheet

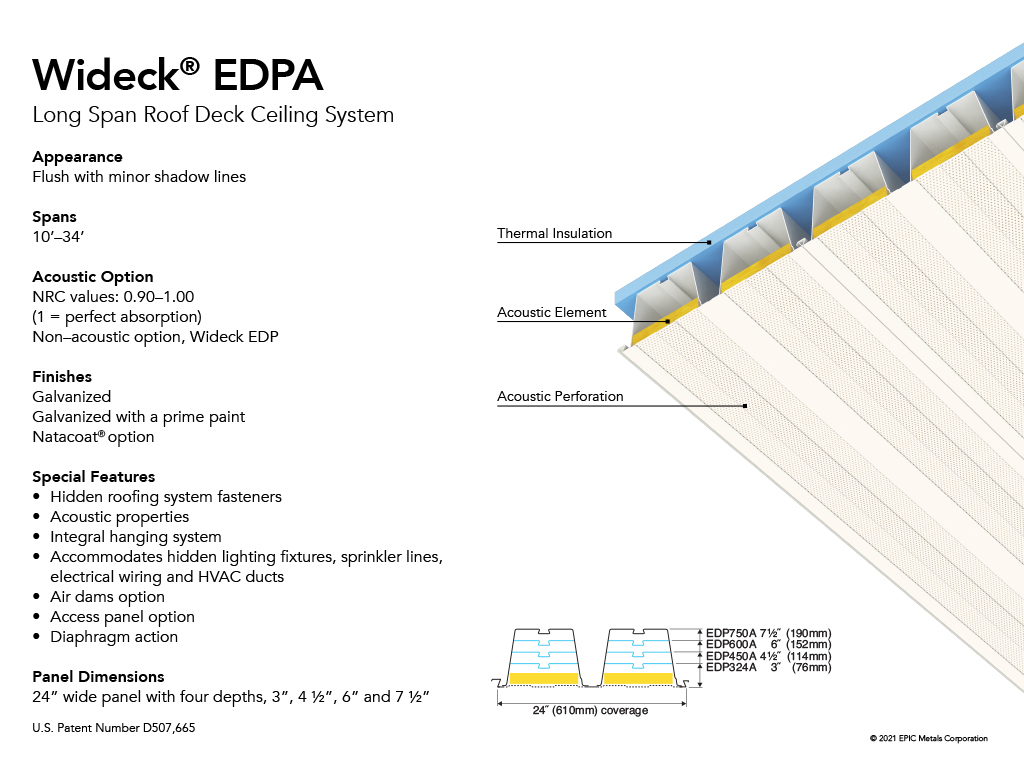

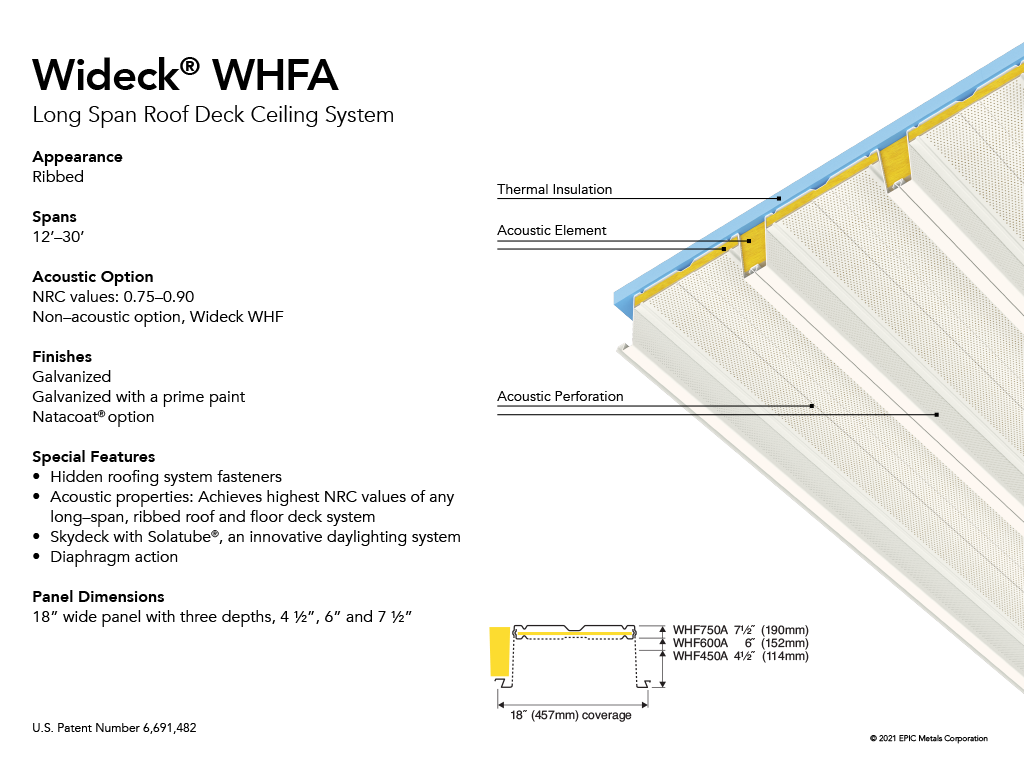

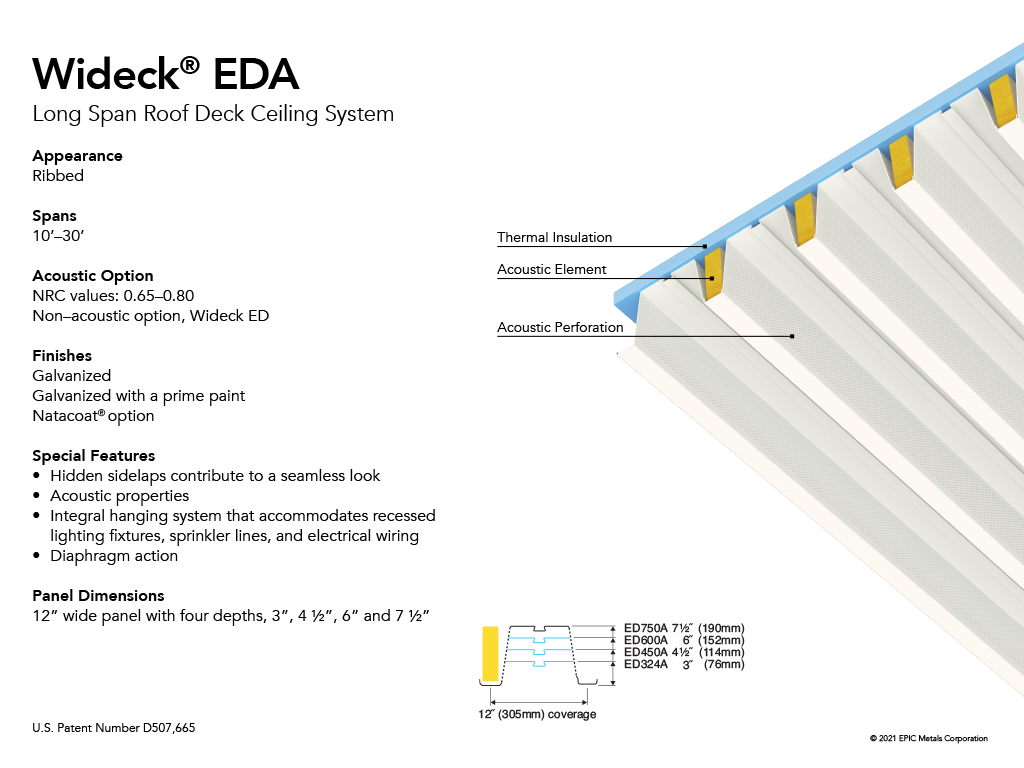

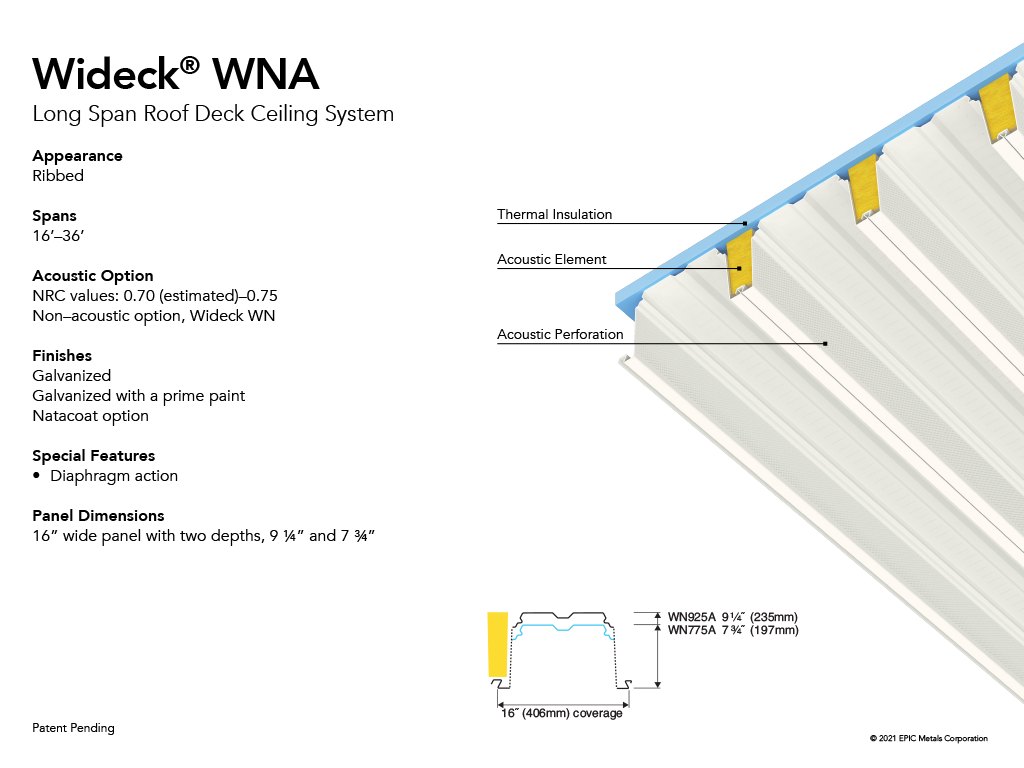

Wideck EDPA	Wideck EDA	Wideck WHFA	Wideck WNA
Spans 10' to 34'.	Spans 10' to 30'.	Spans 12' to 30'.	Spans 16' to 36'.
Appearance Flush with minor shadow lines	Appearance Ribbed	Appearance Ribbed	Appearance Ribbed
Acoustic Option NRC values: 0.90-1.00 (1 = perfect absorption) Non-acoustic option, Wideck EDP	Acoustic Option NRC values: 0.65-0.80 Non-acoustic option, Wideck ED	Acoustic Option NRC values: 0.75-0.90 Non-acoustic option, Wideck WHF	Acoustic Option NRC values: 0.70 (estimated)-0.75 Non-acoustic option, Wideck WN
Panel Dimensions 24" wide panel with four depths 3", 4.5", 6", and 7.5"	Panel Dimensions 12" wide panel with four depths 3", 4.5", 6", and 7.5"	Panel Dimensions 18" wide panel with three depths 4.5", 6", and 7.5"	Panel Dimensions 16" wide panel with two depths 9.25" and 7.75"
Product Sheet	Product Sheet	Product Sheet	Product Sheet

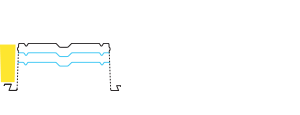

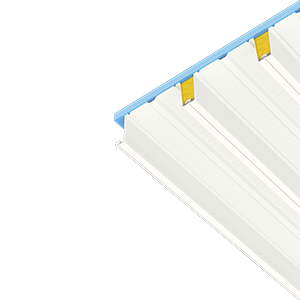

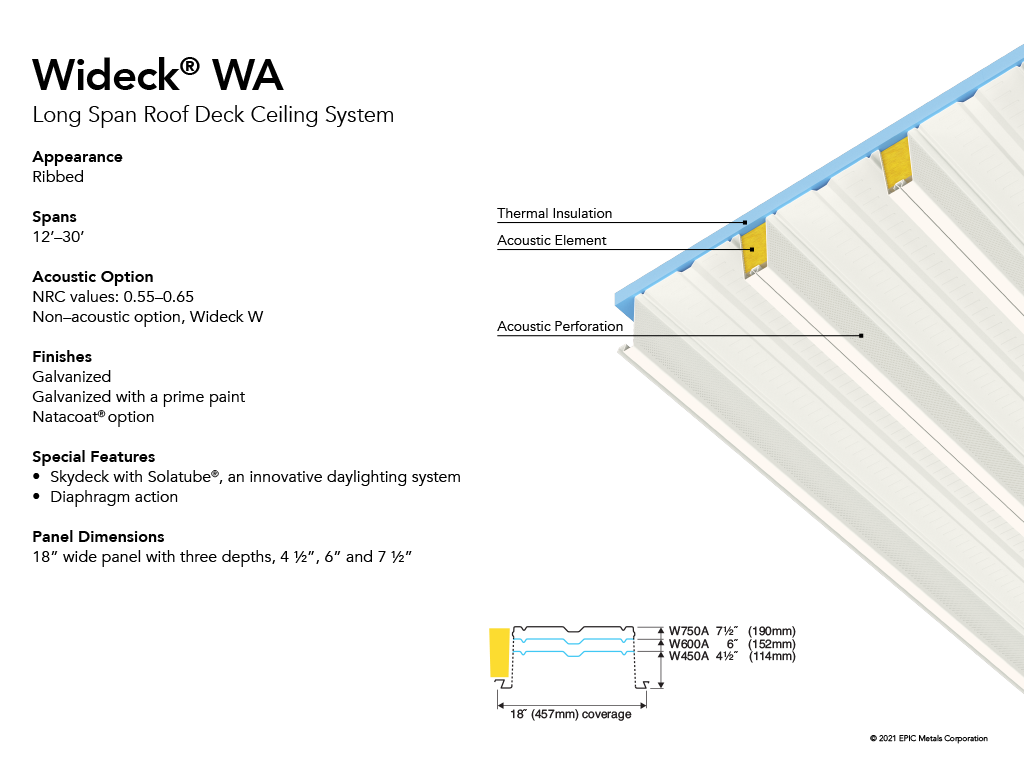

Wideck WA
Spans 12' to 30'.
Appearance Ribbed
Acoustic Option NRC values: 0.55-0.65 Non-acoustic option, Wideck W
Panel Dimensions 18" wide panel with three depths 4.5", 6", and 7.5"
Product Sheet

Floor Deck Ceiling Systems

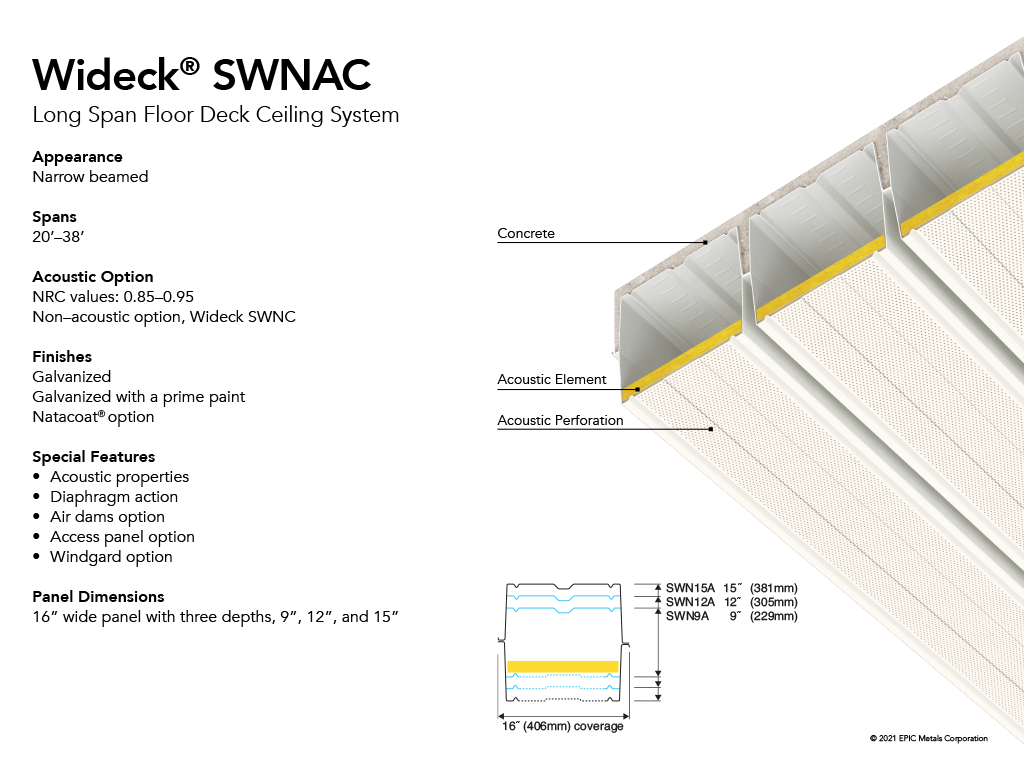

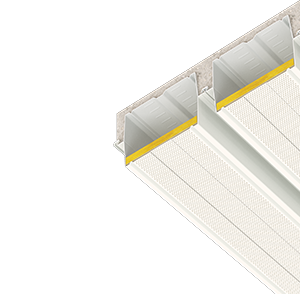

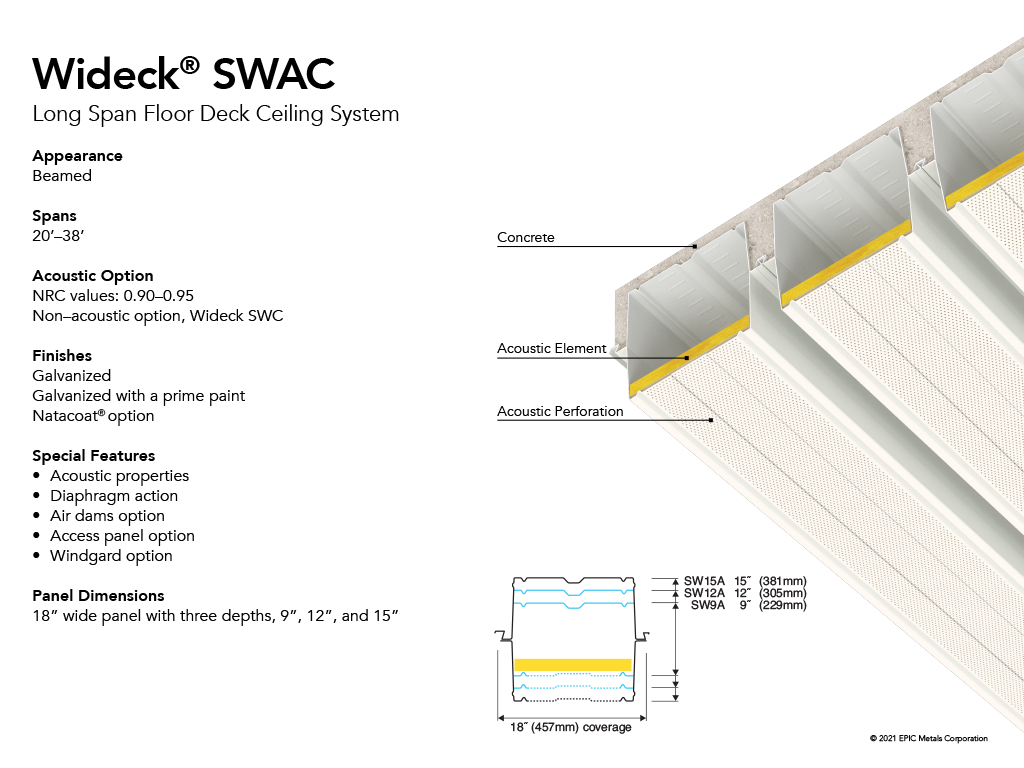

Wideck SWAC	Wideck SWNAC	Wideck SWIAC	Wideck WCPA
Spans 20' to 38'.	Spans 20' to 38'.	Spans 20' to 38'.	Spans 13' to 25'.
Appearance Beamed	Appearance Beamed	Appearance Beamed	Appearance Flush with minor shadow lines
Acoustic Option NRC values: 0.90-0.95 Non-acoustic option, Wideck SWC	Acoustic Option NRC values: 0.85-0.95 Non-acoustic option, Wideck SWNC	Acoustic Option NRC values: 0.90 Non-acoustic option, Wideck SWIC	Acoustic Option NRC values: 0.95-1.00 (1 = perfect absorption) Non-acoustic option, Wideck WCP
Panel Dimensions 18" wide panel with three depths 9", 12", and 15"	Panel Dimensions 16" wide panel with three depths 9", 12", and 15"	Panel Dimensions 16" wide panel with two depths 18 5/8" and 15 5/8"	Panel Dimensions 36" wide panel with three depths 4.5", 6", and 7.5"
Product Sheet	Product Sheet	Product Sheet	Product Sheet

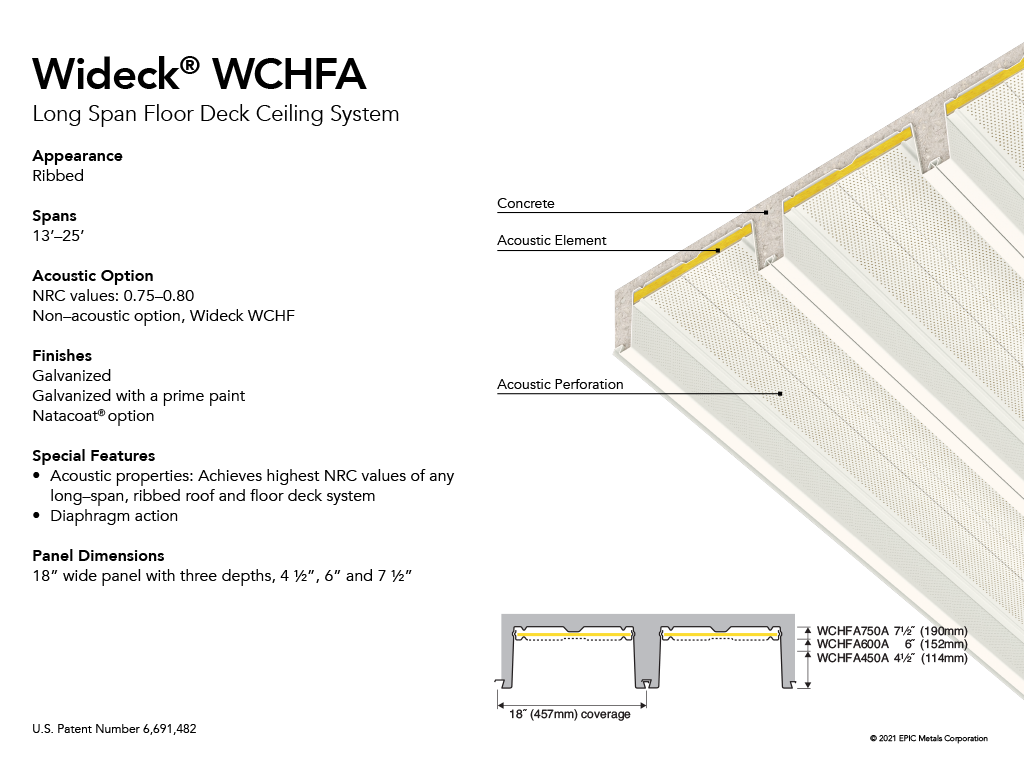

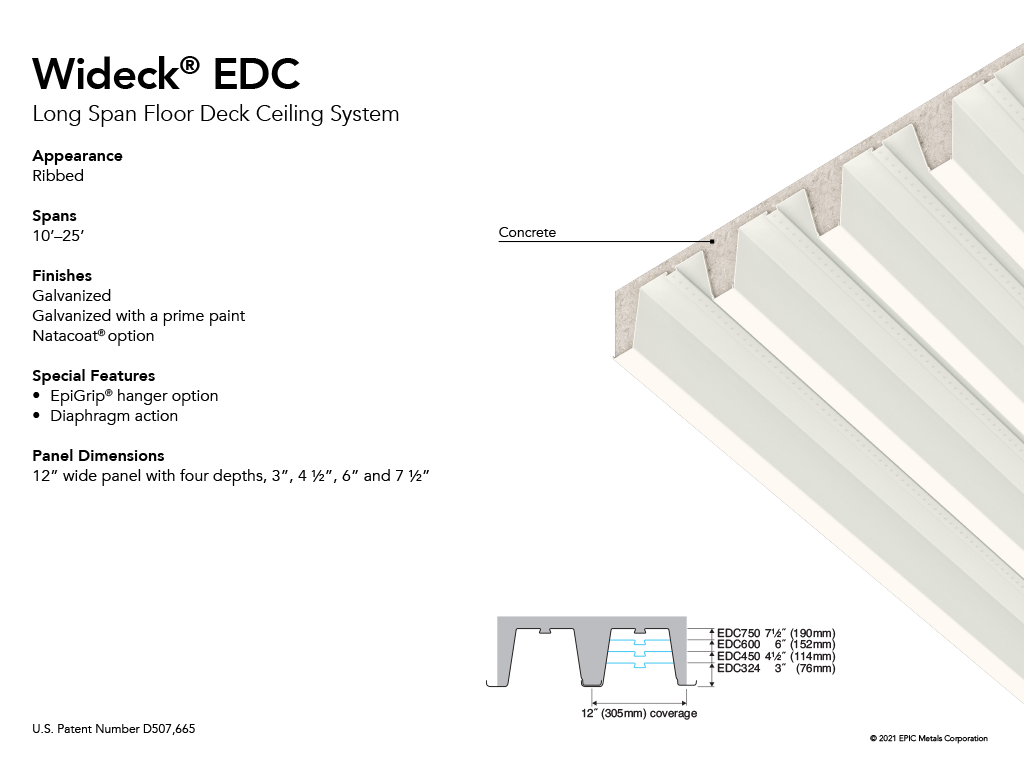

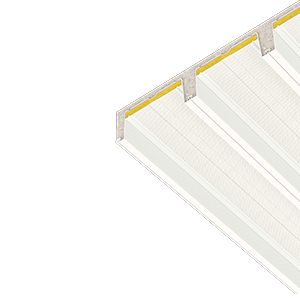

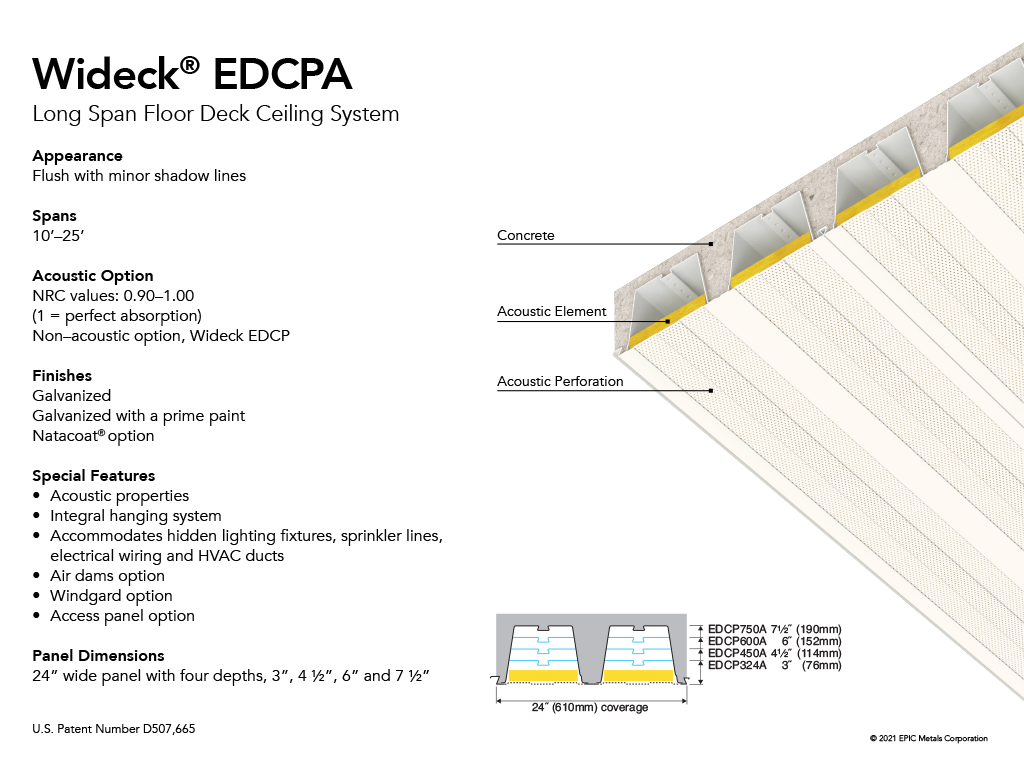

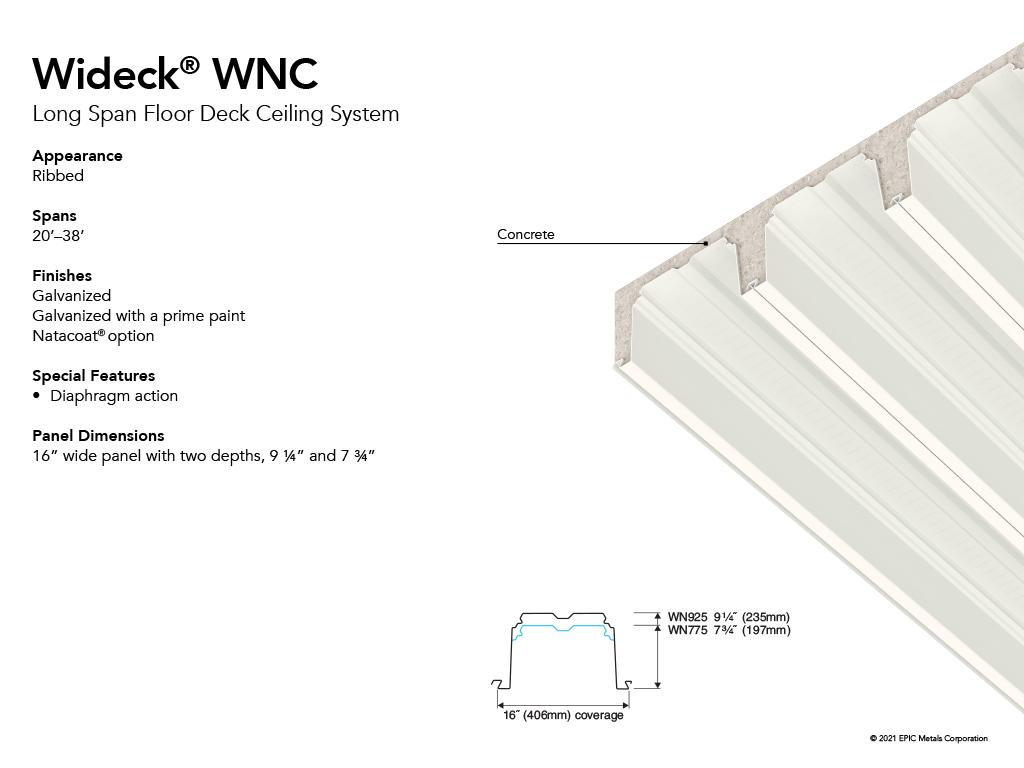

Wideck EDCPA	Wideck WCHFA	Wideck EDC	Wideck WNC
Spans 10' to 25'.	Spans 13' to 25'.	Spans 10' to 25'.	Spans 20' to 38'.
Appearance Flush with minor shadow lines	Appearance Ribbed	Appearance Ribbed	Appearance Ribbed
Acoustic Option NRC values: 0.90-1.00 (1 = perfect absorption) Non-acoustic option, Wideck EDCP	Acoustic Option NRC values: 0.75-0.80 Non-acoustic option, Wideck WCHF	Acoustic Option	Acoustic Option
Panel Dimensions 24" wide panel with four depths 3", 4.5", 6", and 7.5"	Panel Dimensions 18" wide panel with three depths 4.5", 6", and 7.5"	Panel Dimensions 12" wide panel with four depths 3", 4.5", 6", and 7.5"	Panel Dimensions 16" wide panel with two depths 9.25" and 7.75"
Product Sheet	Product Sheet	Product Sheet	Product Sheet

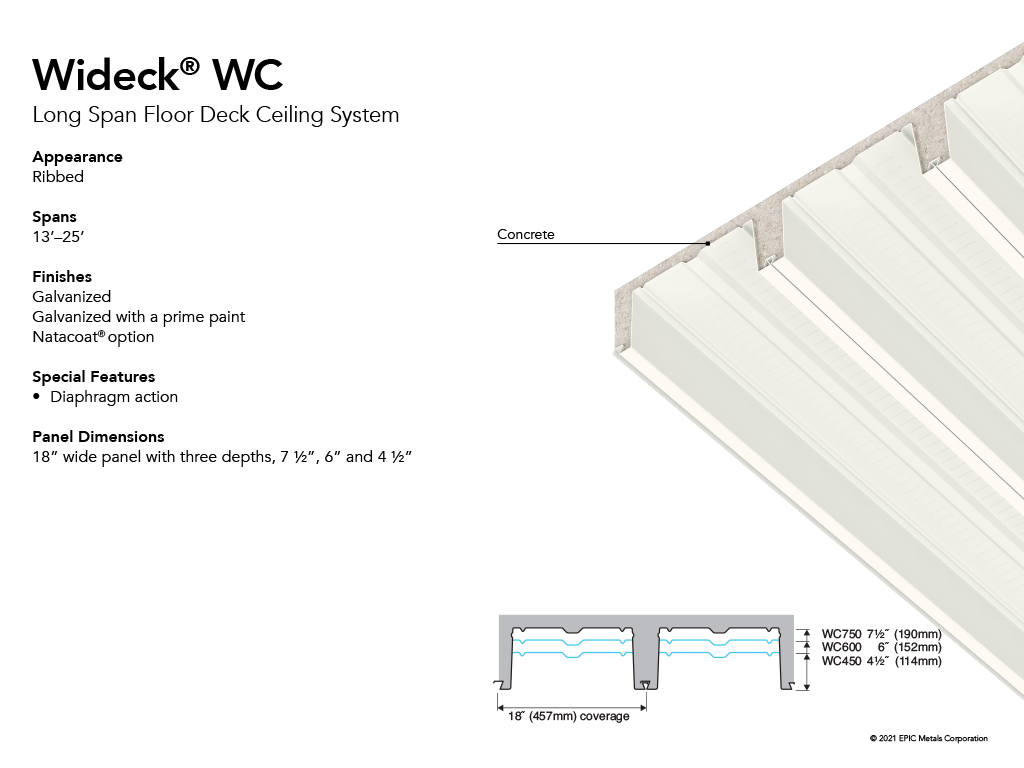

Wideck WC
Spans 13' to 25'.
Appearance Ribbed
Acoustic Option
Panel Dimensions 18" wide panel with three depths 7.5", 6", and 4.5"
Product Sheet
