Toris

Roof and Floor Deck Ceiling Systems

EPIC's Toris Roof and Floor Deck Ceiling Systems offer an innovative approach to designing modern, visually unobstructed interiors with architectural appeal. Recessed corners soften the linear plank form of Toris and create a unique appearance with a gently rounded edge. A dovetail recess hides roofing fasteners—enhancing the appearance.

Toris Roof Deck Ceiling Systems are designed and engineered to span long distances up to 30 feet, depending on the project requirements. Toris 7 (7” depth) can span up to 30 feet, while Toris 5.5 (5.5” depth) spans up to 27 feet, Toris 4 (4” depth) spans up to 24 feet and Toris can span up to 18 feet (2.5” depth). (For Composite Floor Deck Ceiling System information, please register to view the Toris catalog.)

Toris Hanging Feature

The Toris dovetail profile offers a hanging feature to accommodate signage, lighting, or other mechanical and utility components. Toris hangers can be placed continuously, spaced across the width of the profile. Hangers can be installed as they are needed and can be relocated, reused, or removed at any time during the life of the building.

The various features and design innovations of the Toris Roof and Floor Deck Ceiling Systems can lead to their specification in a variety of projects including; airport terminals, schools and universities, office buildings, libraries, gymnasiums, canopies, museums, theaters, natatoriums, or any area where an architectural roof deck ceiling system is desired.

Product Literature

Toris

Roof and Floor Deck Ceiling Systems

32 pages

Download PDF

Toris Composite Hidden Utilities Feature

Descarga PDF (Español)

Technical Assets (BIM / Revit® Models)

- Toris
- Toris A
- Toris C
- Toris CA
- Toris 4
- Toris 4A
- Toris 4C
- Toris 4CA
- Toris 5.5(A)
- Toris 7(A)

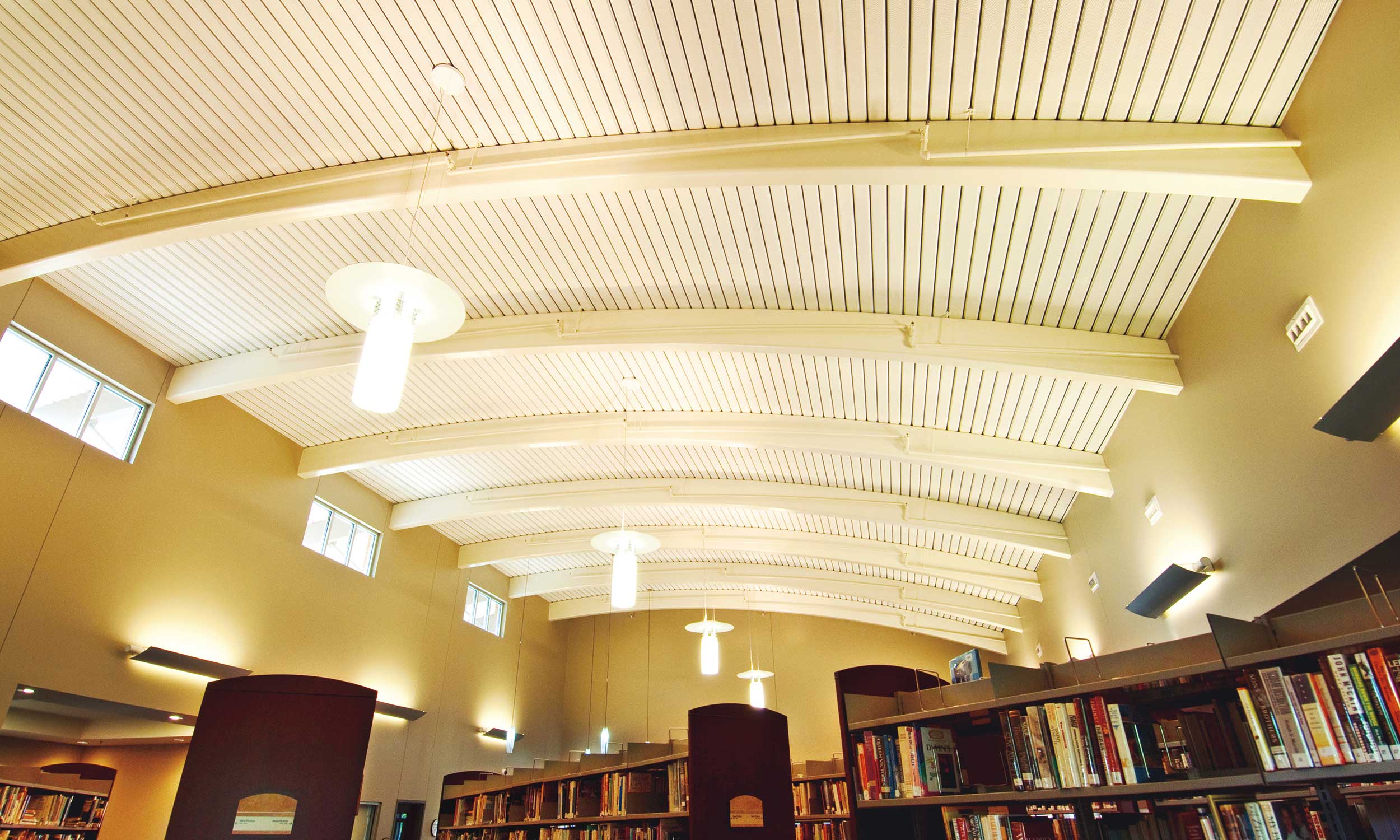

Lake Worth Public Library—Lake Worth, Texas / Toris® A, Toris

Roof Decks

Floor Decks

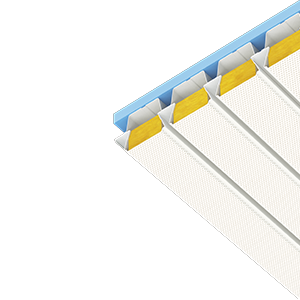

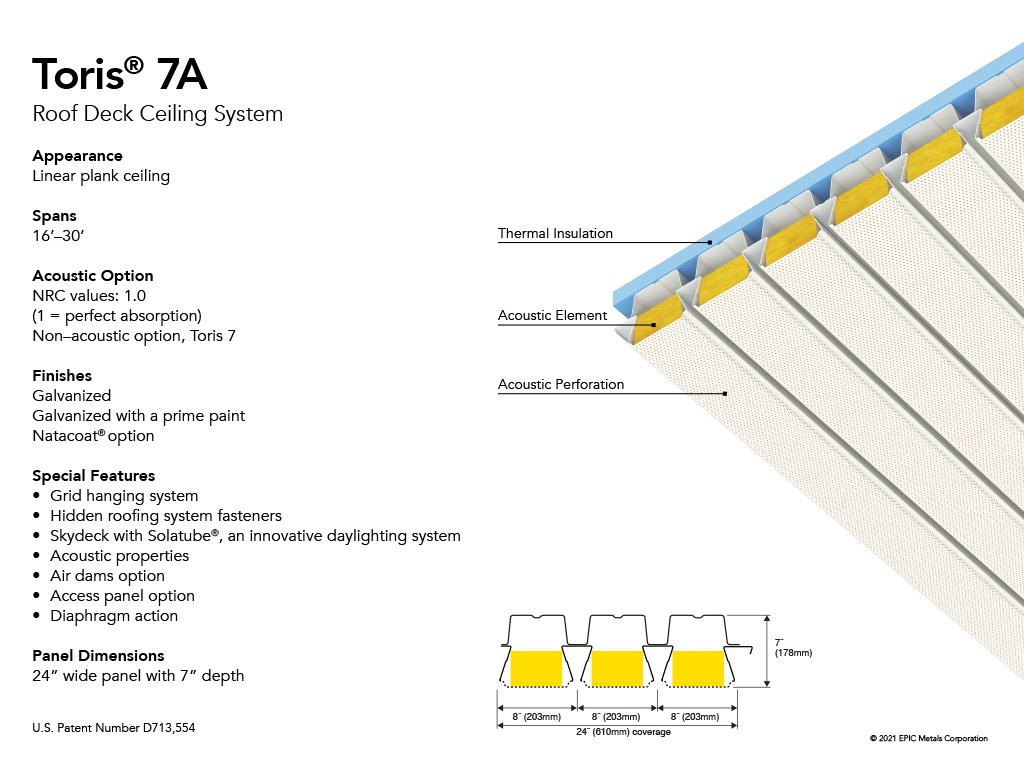

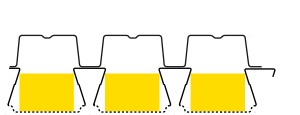

Toris 7A

Spans 16' to 30'. Depth 7".

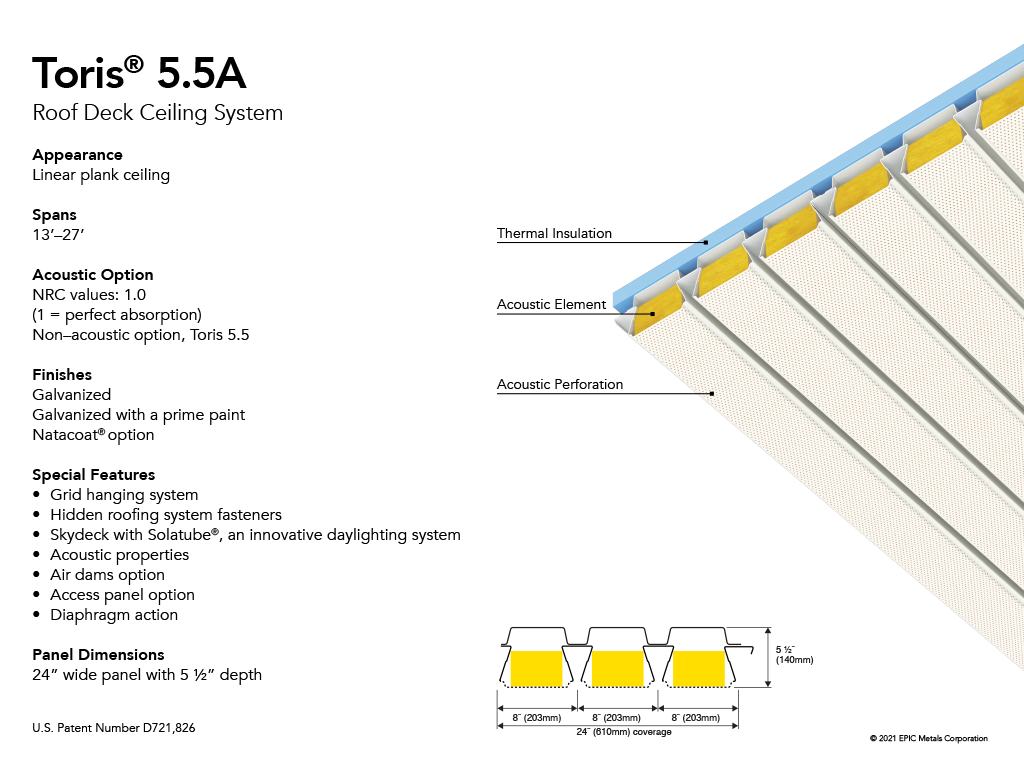

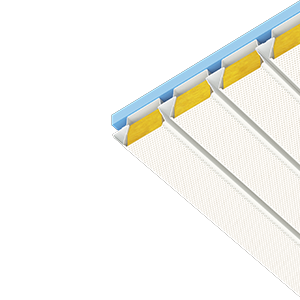

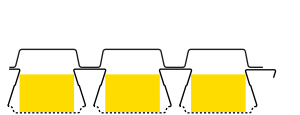

Toris 5.5A

Spans 13' to 27'. Depth 5".

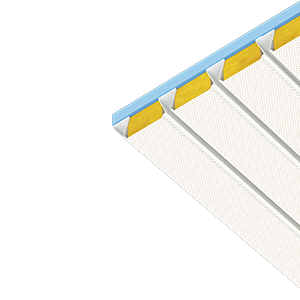

Toris 4A

Spans 14' to 24'. Depth 4".

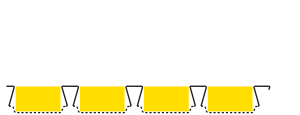

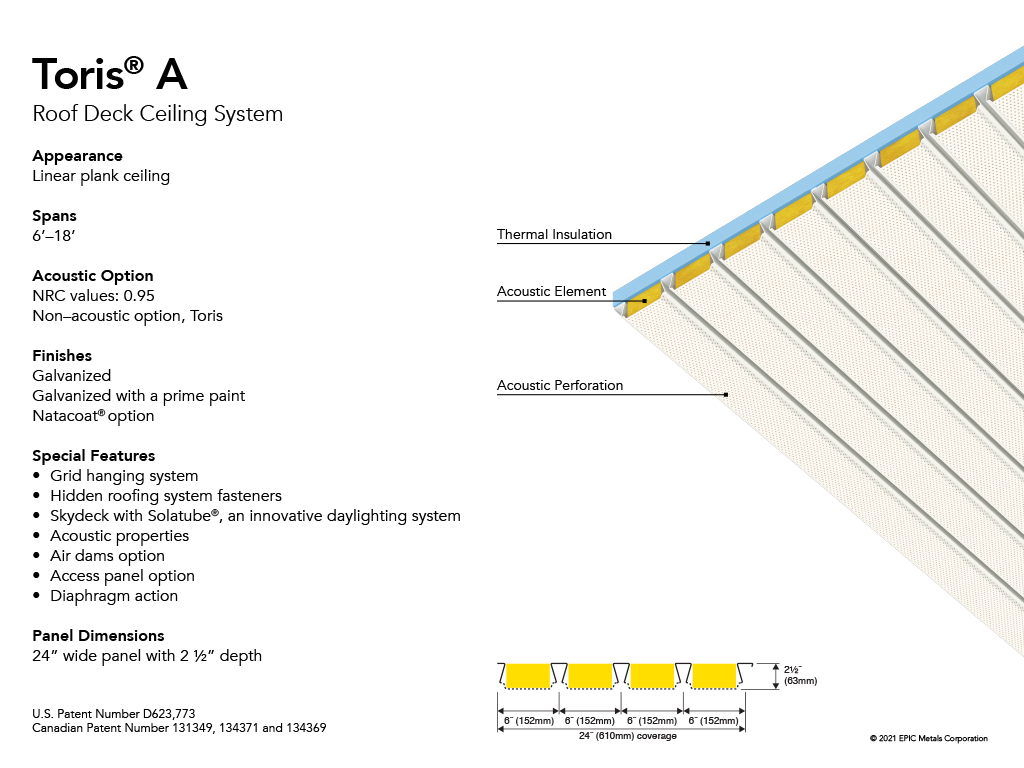

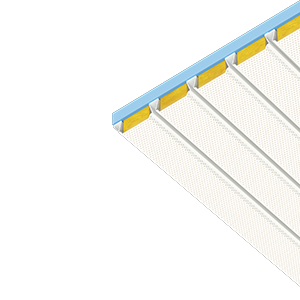

Toris A

Spans 6' to 18'. Depth 2.5".

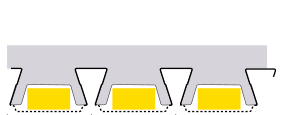

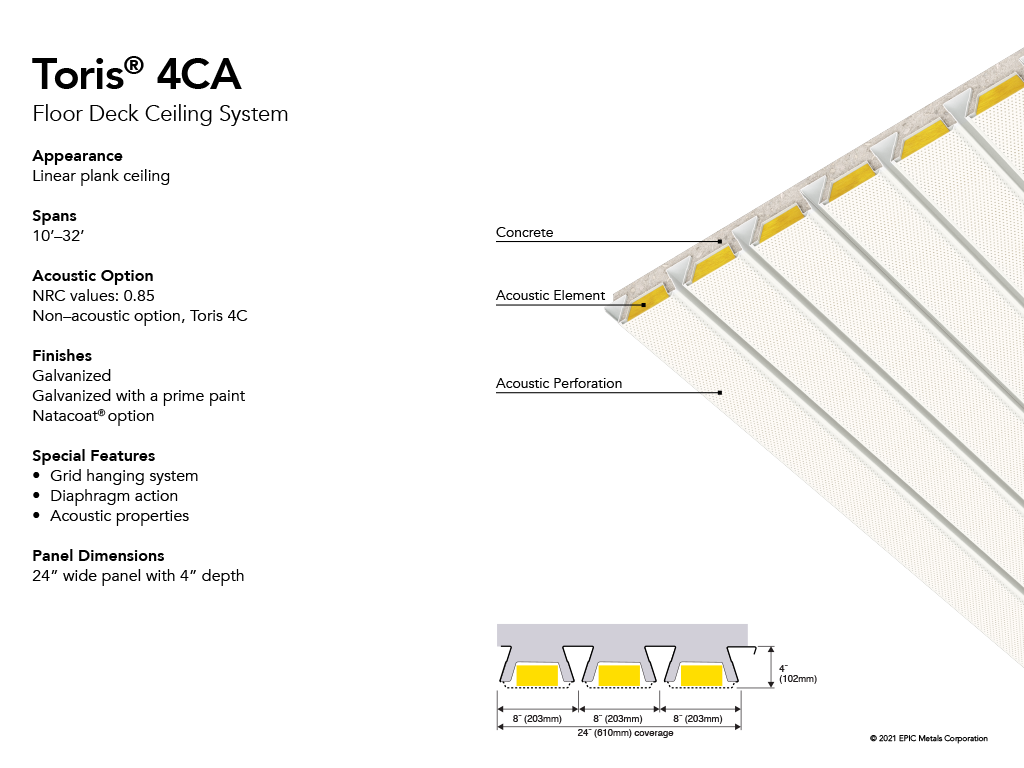

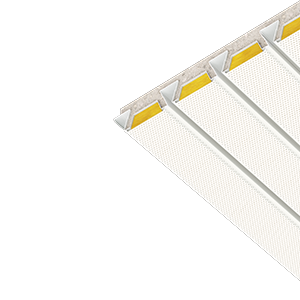

Toris 4CA

Spans 10' to 32'. Depth 4".

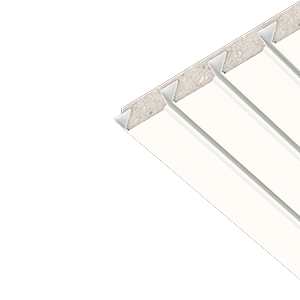

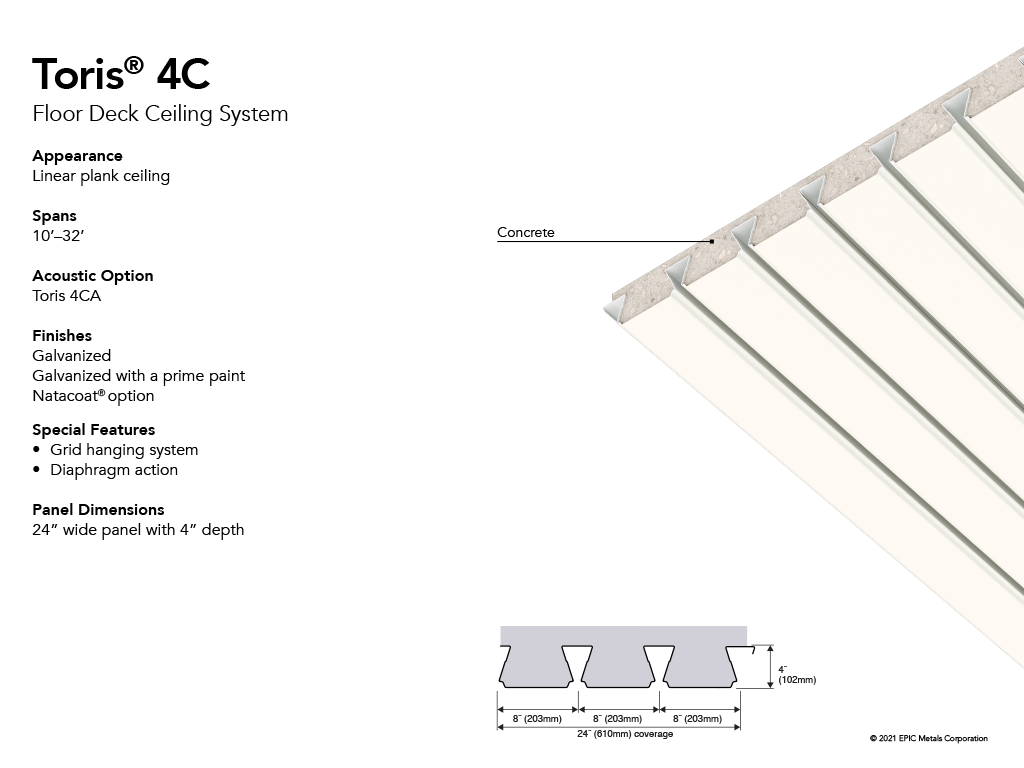

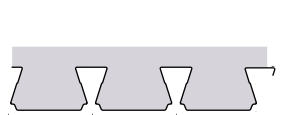

Toris 4C

Spans 10' to 32'. Depth 4".

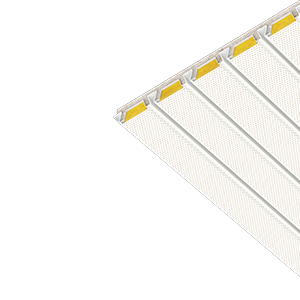

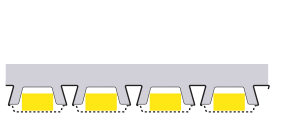

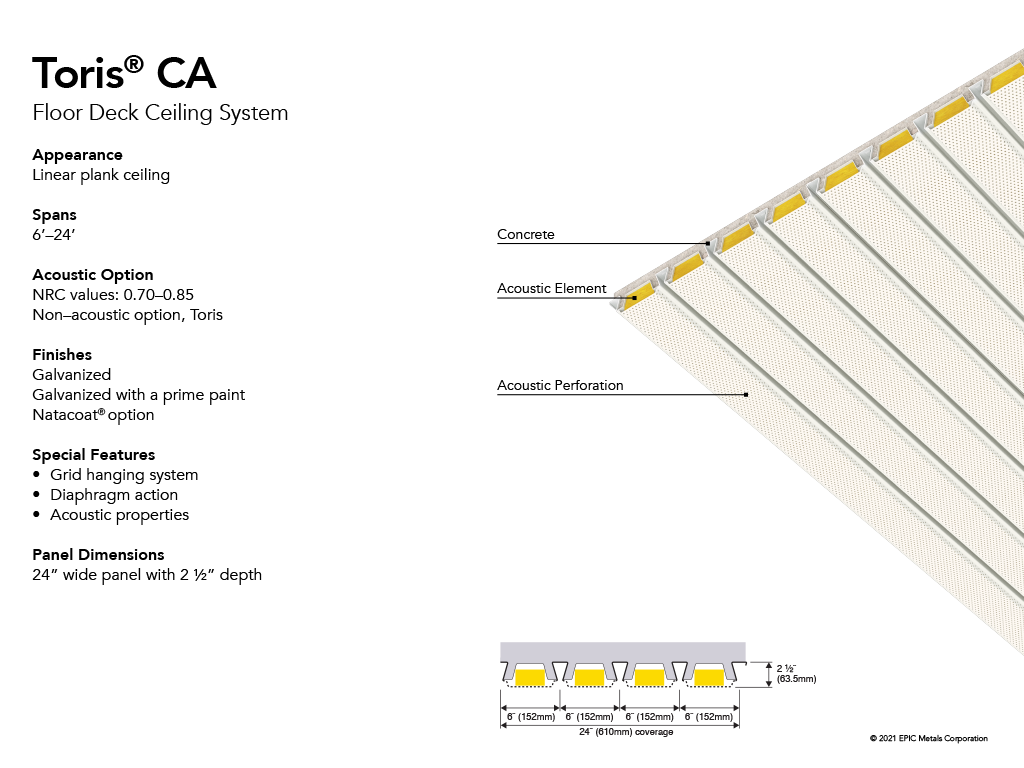

Toris CA

Spans 6' to 24'. Depth 2.5".

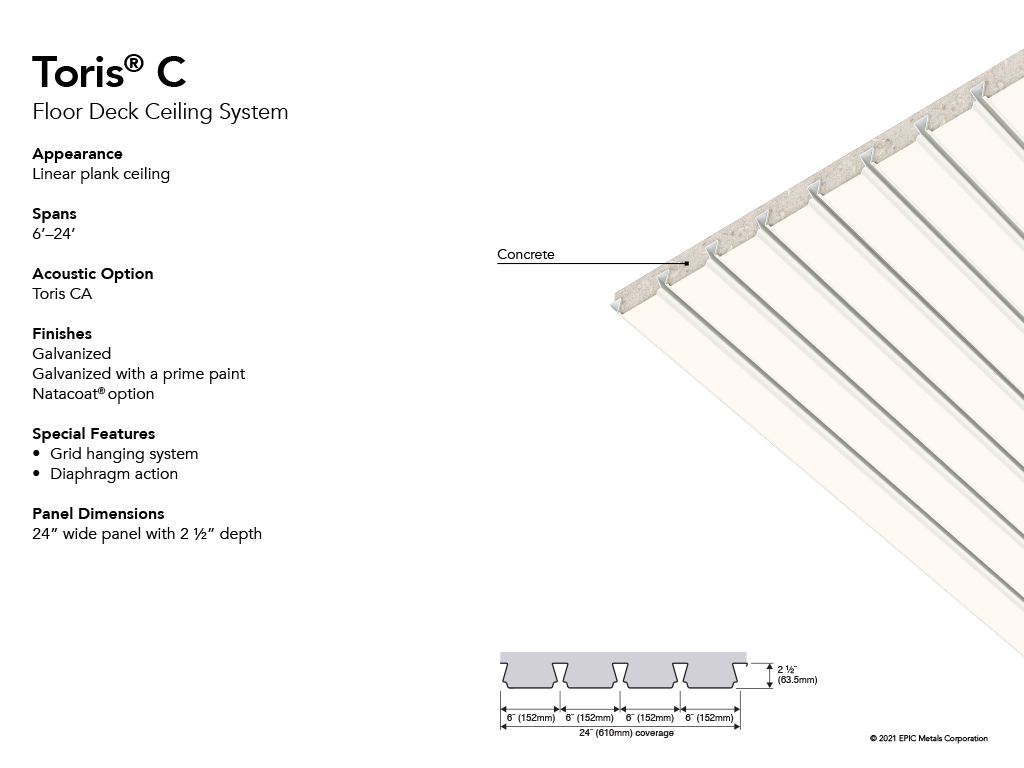

Toris C

Spans 6' to 24'. Depth 2.5".

Roof Deck Ceiling Systems

Toris 7A	Toris 5.5A	Toris 4A	Toris A
Spans 16' to 30'. Depth 7".	Spans 13' to 27'. Depth 5".	Spans 14' to 24'. Depth 4".	Spans 6' to 18'. Depth 2.5".
Appearance Linear plank ceiling	Appearance Linear plank ceiling	Appearance Linear plank ceiling	Appearance Linear plank ceiling
Acoustic Option NRC values: 1.00 (1 = perfect absorption) Non-acoustic option, Toris 7	Acoustic Option NRC values: 1.00 (1 = perfect absorption) Non-acoustic option, Toris 5.5	Acoustic Option NRC values: 0.95 Non-acoustic option, Toris 4	Acoustic Option NRC values: 0.95 Non-acoustic option, Toris
Panel Dimensions 24" wide panel with 7" depth	Panel Dimensions 24" wide panel with 5.5" depth	Panel Dimensions 24" wide panel with 4" depth	Panel Dimensions 24" wide panel with 2.5" depth
Product Sheet	Product Sheet	Product Sheet	Product Sheet

Floor Deck Ceiling Systems

Toris 4CA	Toris 4C	Toris CA	Toris C
Spans 10' to 32'. Depth 4".	Spans 10' to 32'. Depth 4".	Spans 6' to 24'. Depth 2.5".	Spans 6' to 24'. Depth 2.5".
Appearance Linear plank ceiling	Appearance Linear plank ceiling	Appearance Linear plank ceiling	Appearance Linear plank ceiling
Acoustic Option NRC values: 0.85 Non-acoustic option, Toris 4C	Acoustic Option Toris 4CA	Acoustic Option NRC values: 0.70-0.85 Non-acoustic option, Toris C	Acoustic Option Non-acoustic option, Toris CA
Panel Dimensions 24" wide panel with 4" depth	Panel Dimensions 24" wide panel with 4" depth	Panel Dimensions 24" wide panel with 2.5" depth	Panel Dimensions 24" wide panel with 2.5" depth
Product Sheet	Product Sheet	Product Sheet	Product Sheet
